Products
Energy Storage solutions that ensure you will not just survive, but thrive as we transition into a fully electric world.
SHOCK
ABSORBING
ENERGY SYSTEMS
There is no silver bullet to the energy transition. That’s why QuinteQ developed four distinct solutions.

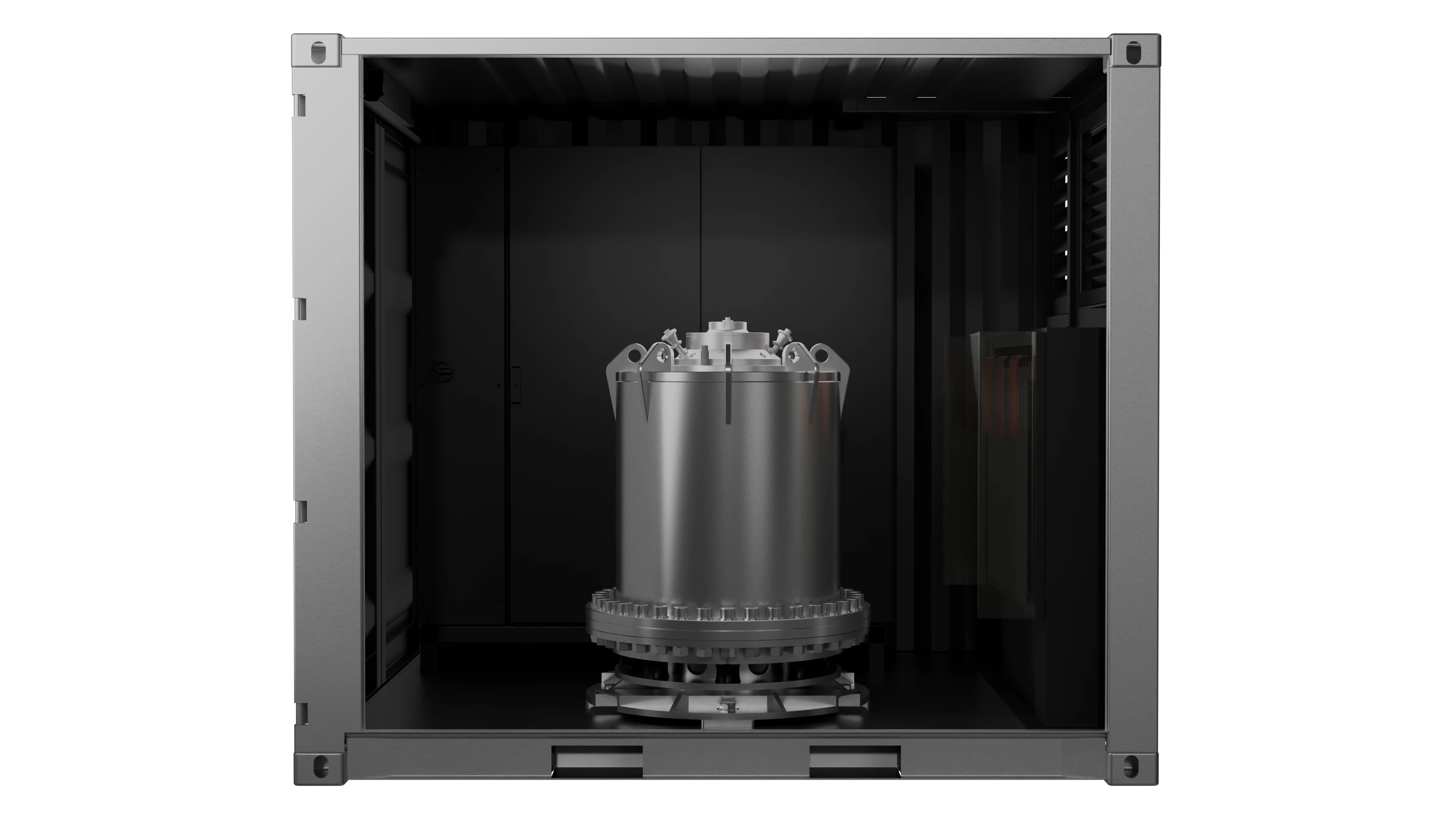

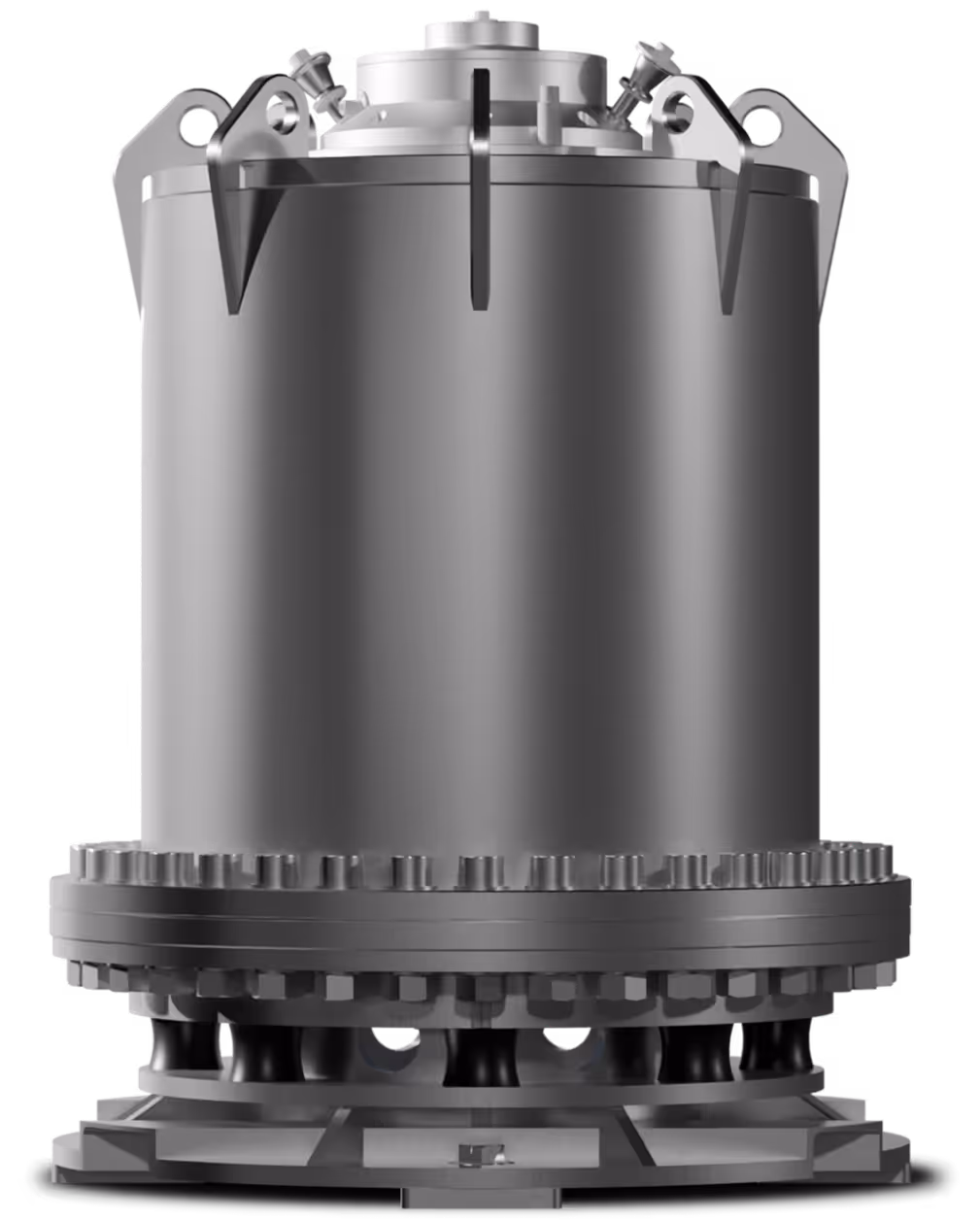

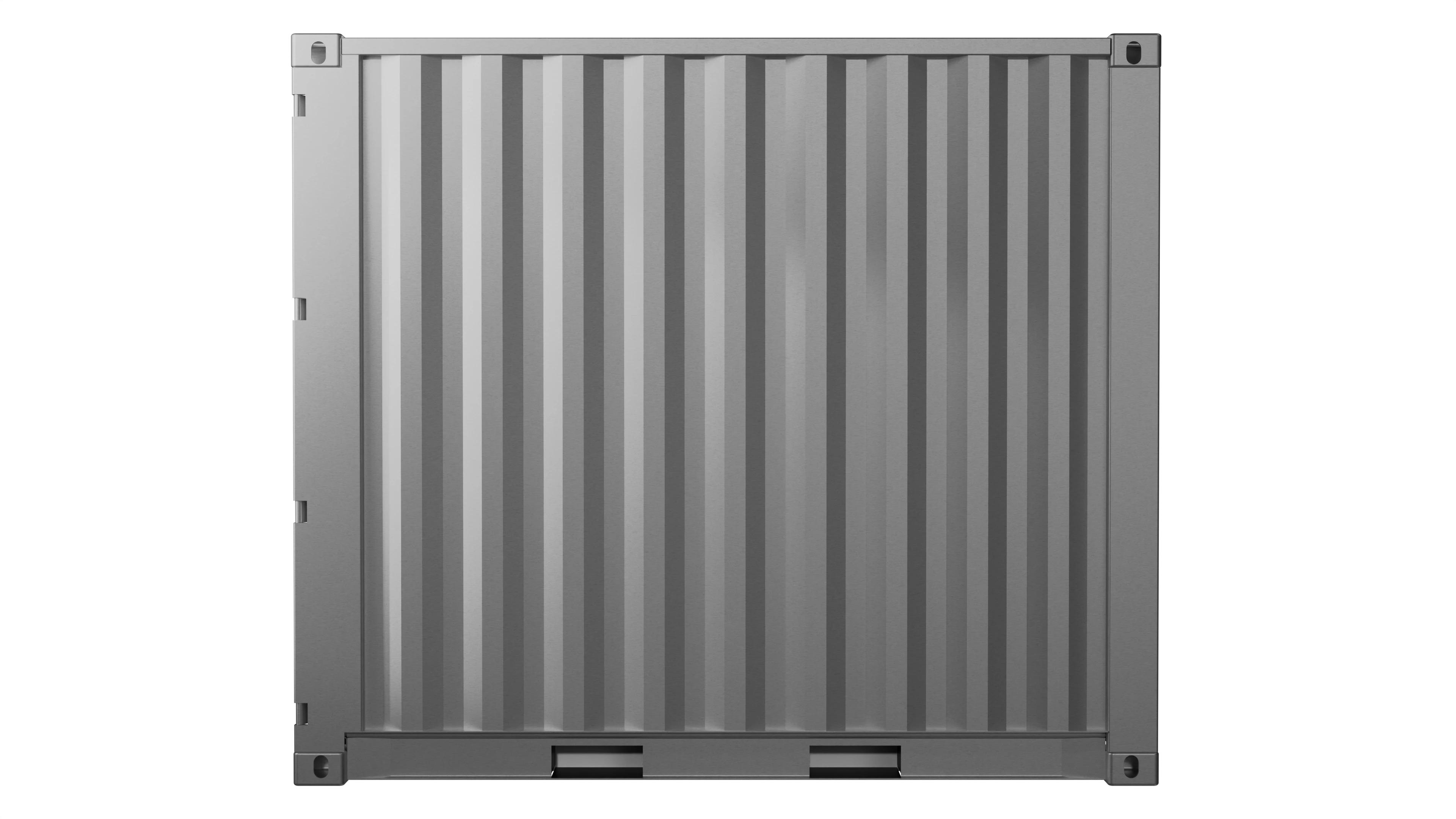

Thor
Flywheel Energy StorageWith THOR Power you:
- Reduce your power demand by up to 80%
- Peak shave multiple peak users
- Rely on a rugged mechanical solution that is built to last
- Cut down on generator fuel costs
- Operate with no chemistry and zero fire risk

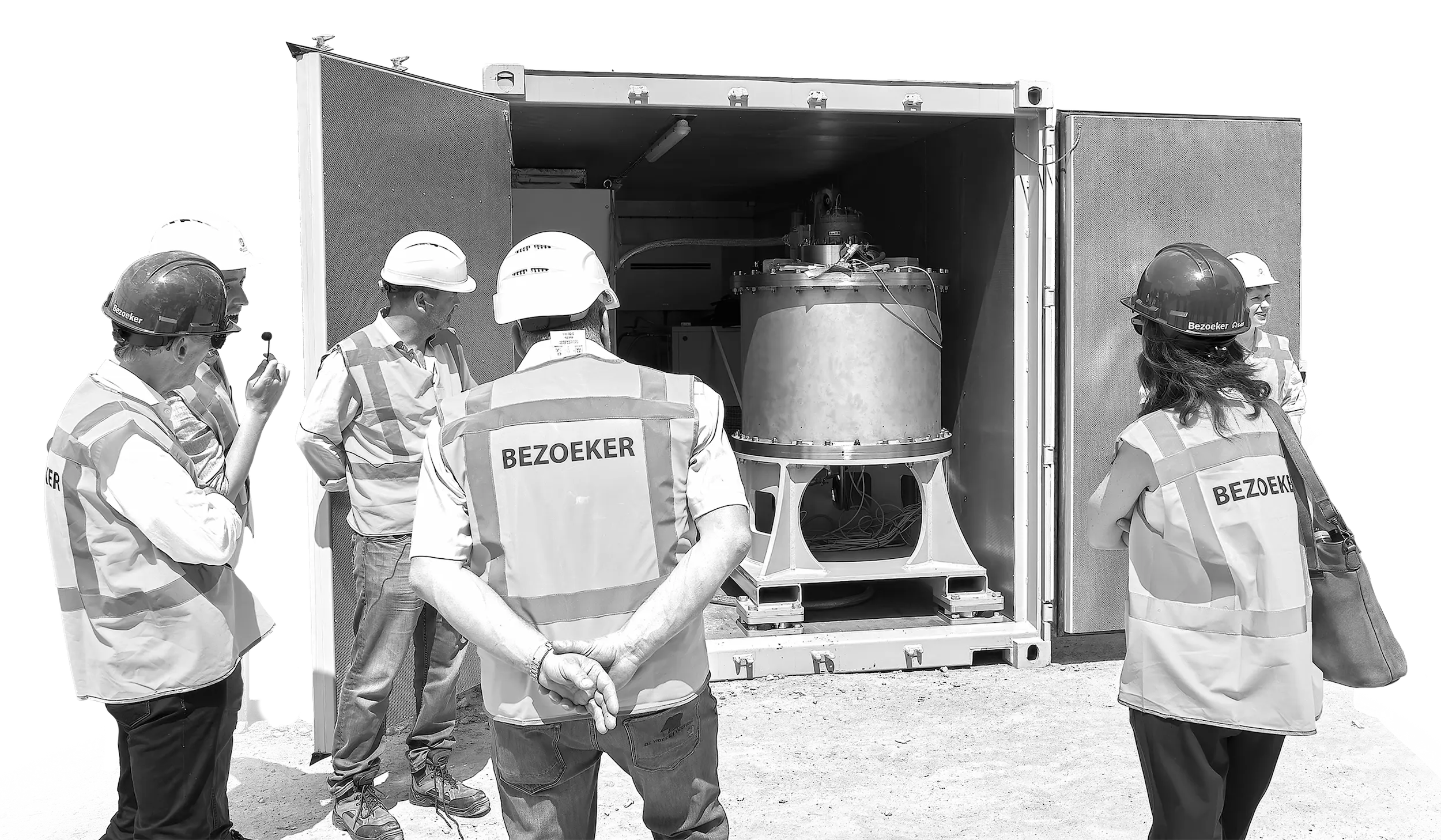

More than half of a construction site’s power demand can be traced back to tower cranes and hoists. How can the THOR system help you?
THOR makes your project more energy-efficient, allowing you to keep your grid connection as small as possible. One system can support peak shaving of one or more tower cranes and hoists, reducing power demand of your peak power users by up to 80%.
Choosing a flywheel means choosing a mechanical solution that is both safer and has a longer lifespan than chemical storage solutions. QuinteQ has worked with large construction companies to ensure that THOR meets the most intensive demands.
Thor specs
Power
300 kWC-rating
75CSystem Weight
6 tonnesEnergy
4 kWhResponse Time
40 msOperating Temperature
-15°C to +40°CCycle Life
> 350.000System Size
10-ft containerCertificates
NEN1010, CE, Machinery DirectiveSerivce Life

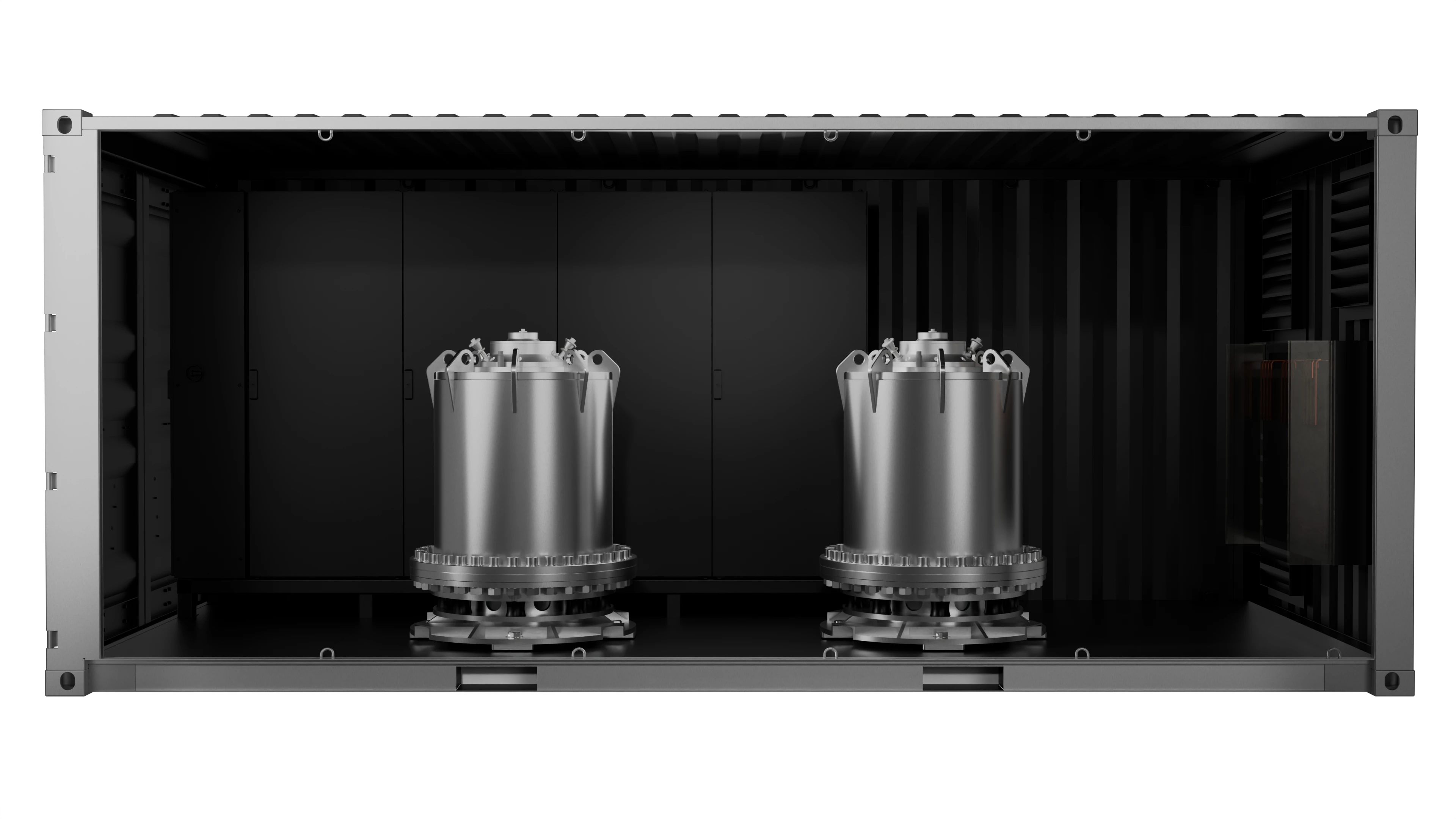

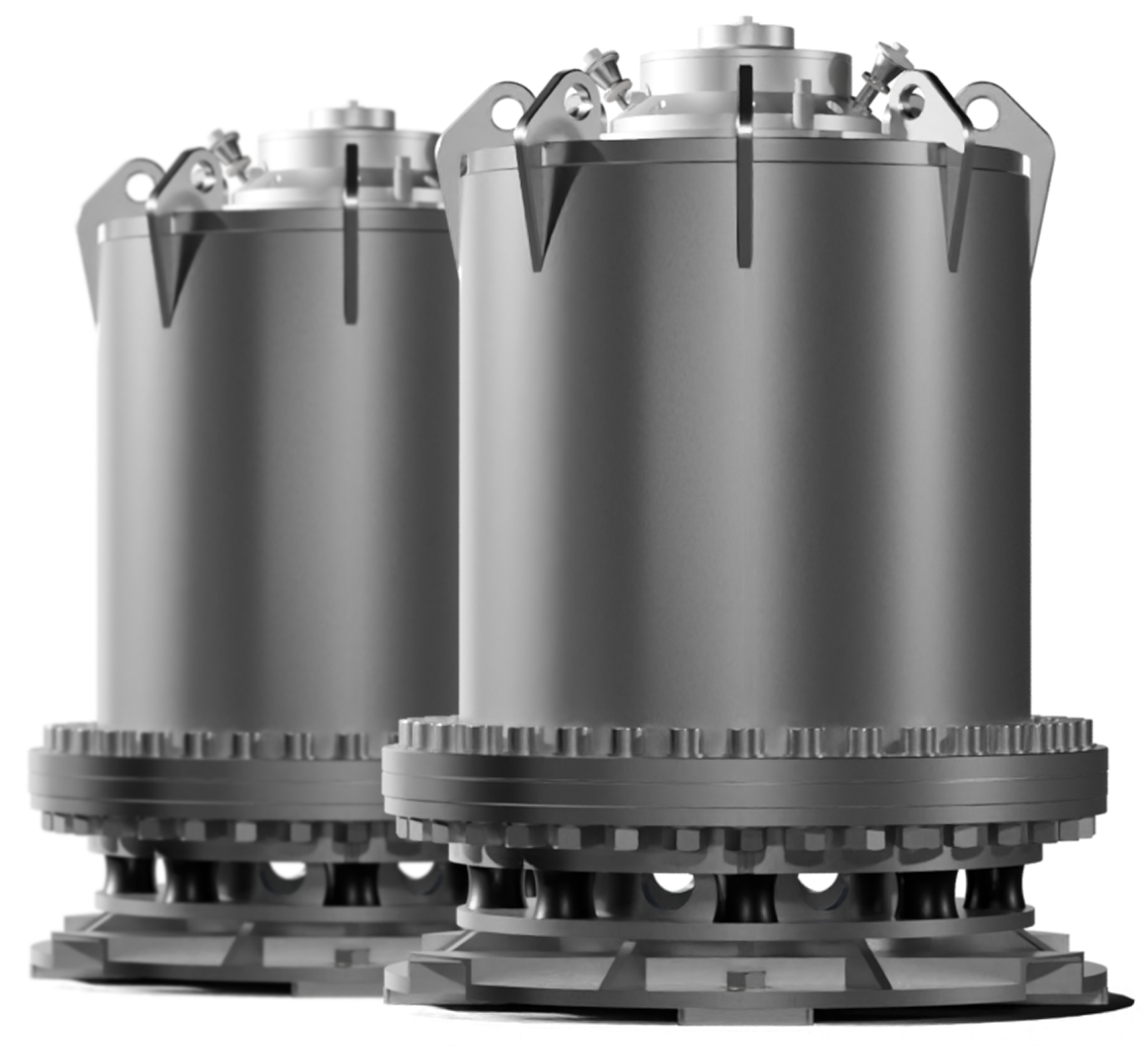

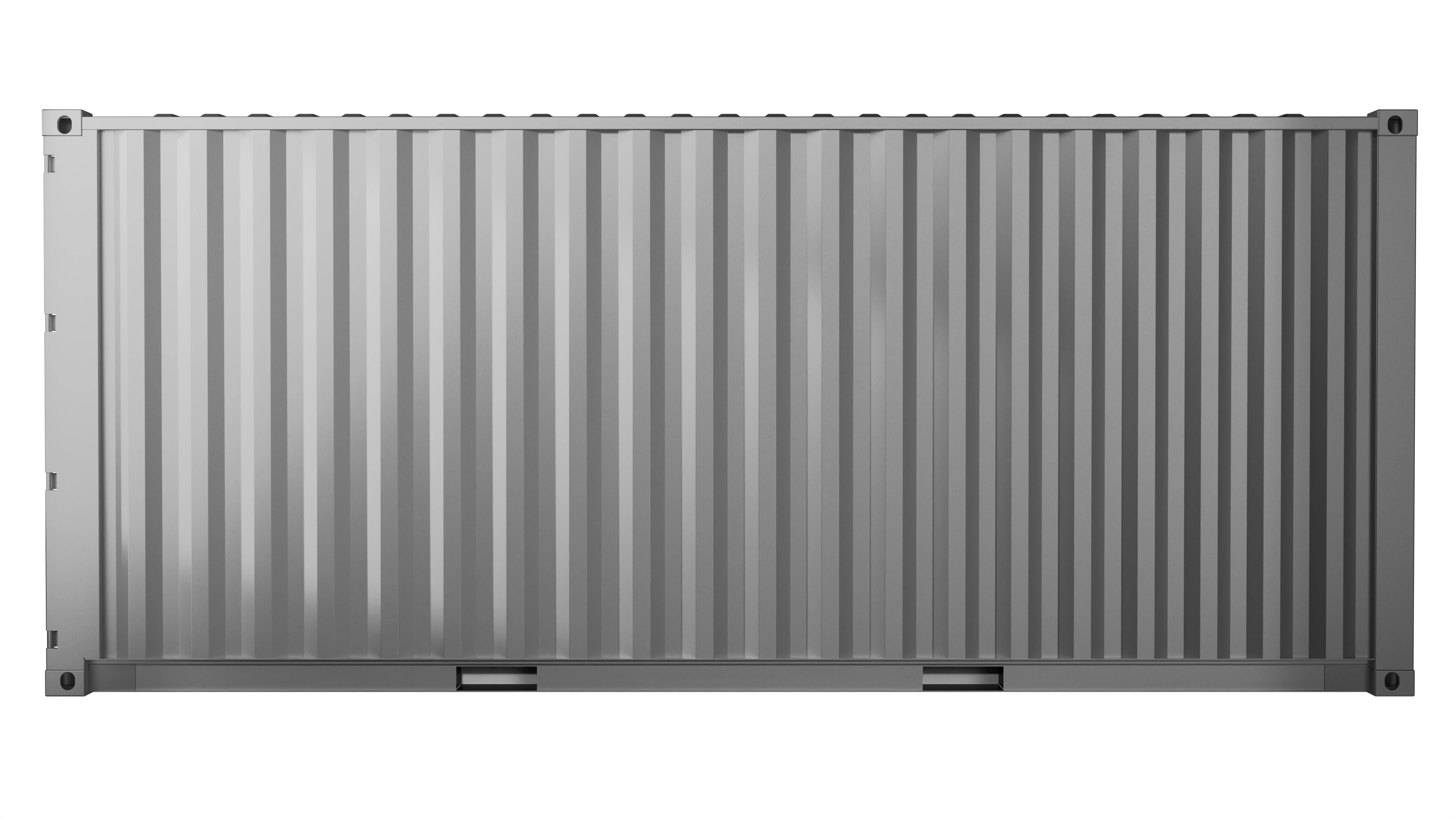

> 15 yearsThor X
Modular Flywheel Energy StorageWith THOR X Power you:
- Obtain a custom fit solution for high power applications
- Combine 600 KW and 300 KW flywheels for a tailored solution
- Minimize CAPEX for electrification grid upgrades
- Capture and reuse brake energy
- Use one container for multiple peak power users
- Operate with no chemistry and zero fire risk
Same grid connection, more power for electrification. Here’s what THOR X does for you.
THOR X optimizes your grid utilization by limiting the impact of electric cranes on your grid connection. A high-power, modular system tailored to your crane operations: Ranging from smaller cranes to megawatt-scale installations. To meet the diverse needs of your site, THOR X is configurable, using 600 kW and 300 kW building blocks to deliver your solution.
Thor X specs
Power
600 kW - 4.2 MWC-rating
150CSystem Weight
6 tonnesEnergy
4kWh - 28 kWhResponse Time
40 msOperating Temperature
-15°C to +40°CCycle Life
> 350.000System Size
10 FT - 20 ft containerCertificates
NEN1010, CE, Machinery DirectiveSerivce Life

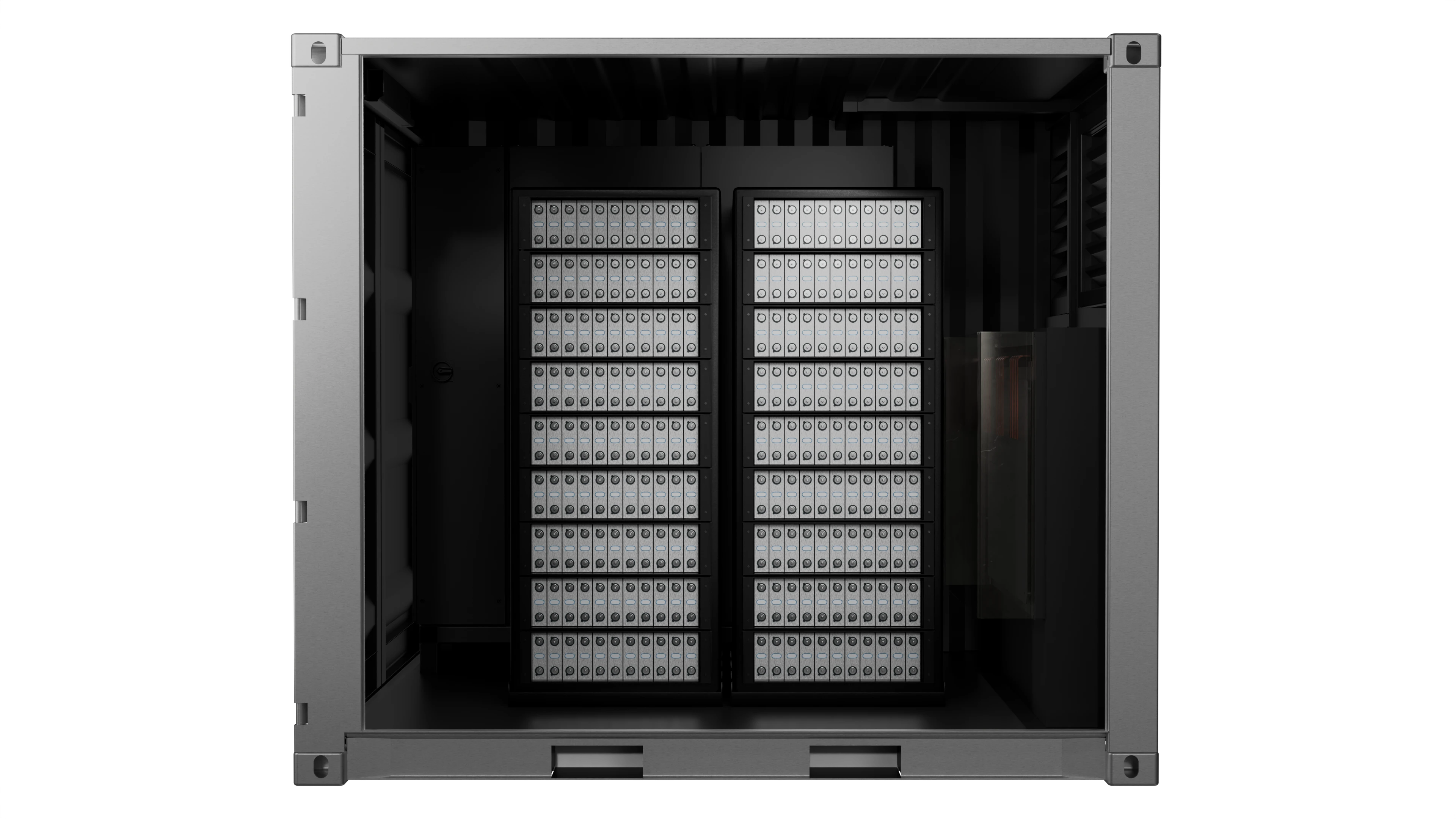

> 15 yearsCrystal
Sodium-ion Batteries for safe and independent Energy StorageThe CRYSTAL Power:
- Containerized novel energy storage solution
- More sustainable than Li-Ion
- Wider operational temperature range
- Lower OPEX through optimized design
- Designed and manufactured in Netherlands with EU standards from cell level
- Enhanced Safety
We design and build our own battery systems, in Culemborg, The Netherlands.
CRYSTAL is ideal for stationary applications, such as grid balancing or renewable energy projects. Sodium-ion uses more abundant materials than lithium-ion, at a lower cost, providing a more independent and secure long-term supply chain. Combined with a wider operational temperature range and a lower risk of thermal runaway, we set a new standard for safety and reliability.
With our innovative design and manufacturing in the Netherlands, we make recycling easy and keep operating costs down.

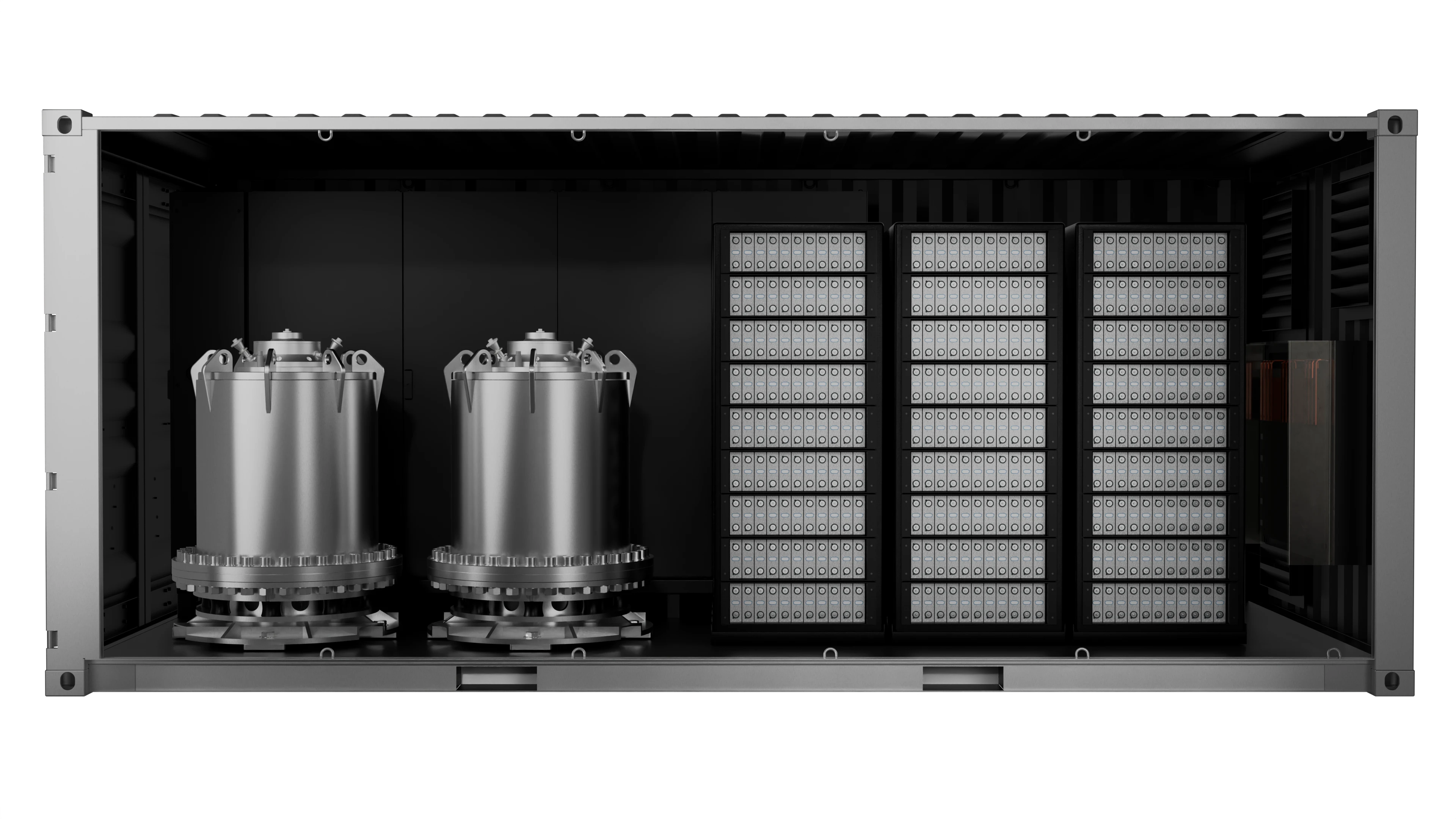

Zeus
Hybrid Energy Storage Solution (HESS)The ZEUS Power:
- Combines peak shaving power with high capacity
- Modular; configured to your needs
- Scalable solution that EVOLVES alongside your project
- Smaller footprint; two solutions in one container
- Specialized solution for specialized projects
Going electric requires flexibility for a myriad of challenges. ZEUS does it all in a 20ft container.
There isn’t one solution to all of your energy needs. ZEUS combines both flywheel and sodium-ion technology in one portable container. QuinteQ’s HESS is a sophisticated solution to the more complex energy challenges. Whether it’s a construction site, port terminal, or industrial zone, we offer you the space and stability to go electric.
Highly Customizable
The system’s specifications are fully adjustable: the ratio between flywheel and sodium-ion storage can be tuned to match different power and energy demands. Your use case sets the balance.
Onboarding steps
Discovery
Intake conversation to dive into the problem or challenge and understand the needs of your organisation.
Energy Profiling
We analyze your power usage patterns and assess the project from an electrical engineering perspective. This can include on-site power measurements and peak shaving simulations to find the best opportunities for savings and efficiency.
Solution Design
Based on the deeper analysis, we present our proposed solution with an initial price estimate. Relevant stakeholders are onboarded.
Lease / Buy
Choose the option that best fits your project requirements: lease/rent via eQiP for flexible project needs or buy directly from QuinteQ for long-term ownership.
Service & Maintenance
To ensure the long life of your asset, QuinteQ offers service and maintenance for all QuinteQ systems. A good service organization is critical to guarantee you the best system uptime.
